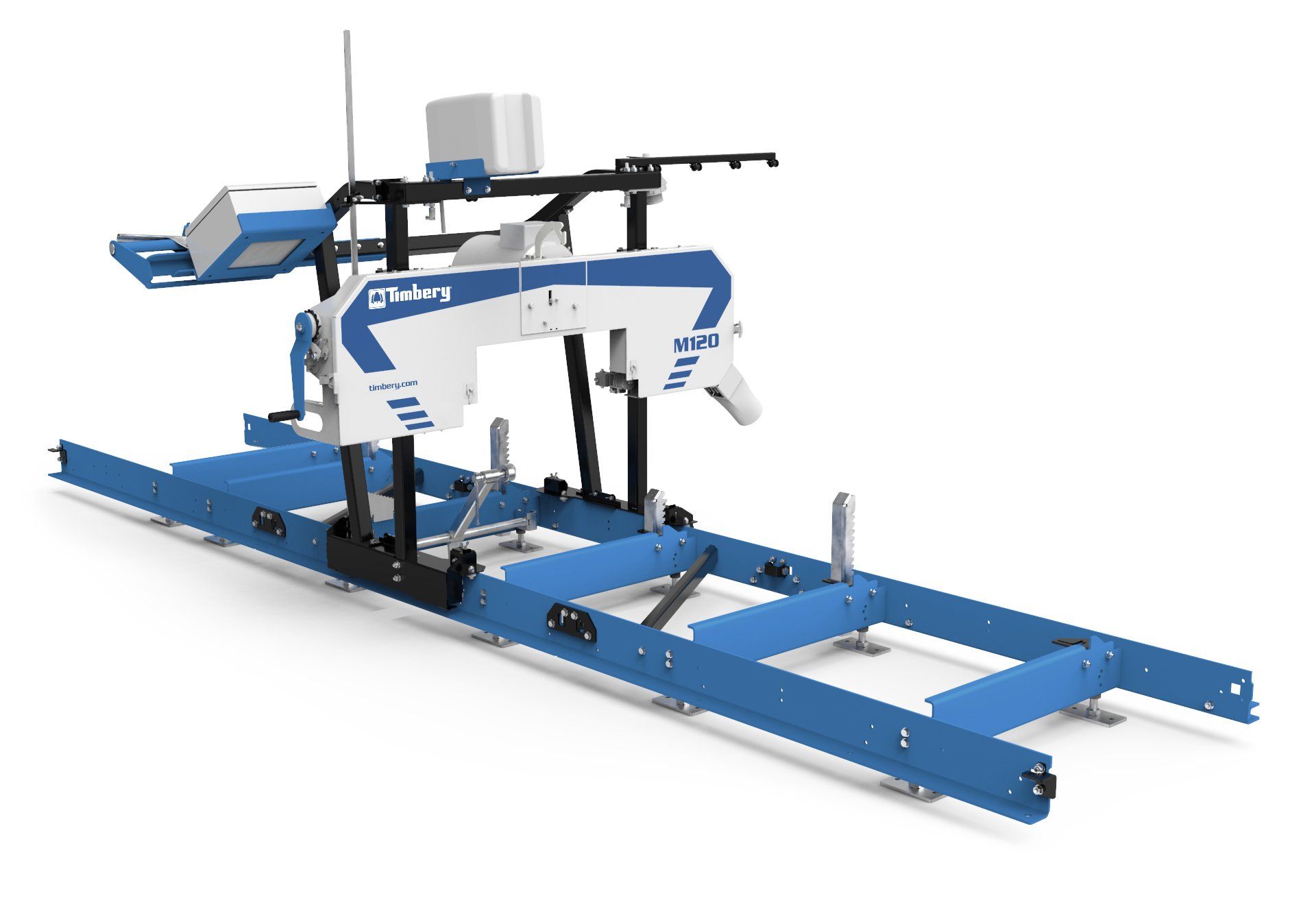

M120 Portable Sawmill
M120 Portable Sawmill
The M120 sawmill is an entry-level sawmill that fits the needs of hobby sawyers, woodworkers and small woodlot owners.
Get a Quote
Overview

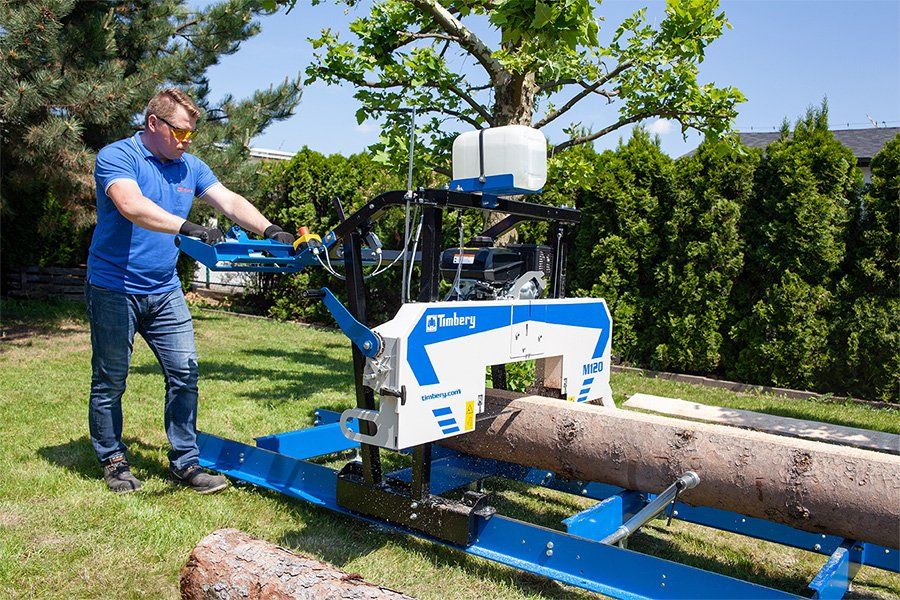

This sawmill comes standard with everything you would need to start sawing logs that are 26” diameter and 12’ 5” long. The M120 sawhead is easily pushed down the bed rails with a sturdy push bar and has a manual head crank to accurately set the blade height. We designed the M120 with the sawyer in mind with all adjustments to the sawhead conveniently made from the operator’s location. The M120 also features a new stronger mast and sawhead design allowing for better stability while sawing.
Specifications
| Log Diameter | 26" |
| Cant Width | 22" |
| Log Length (without extensions) | 12' 5" |
| Opt. Bed Extensions | 5' sections (Unlimited bed sections can be added) |
| Standard Engine | 9.5 HP Gas |
| Optional Engine | 14 HP Gas |
| Pull or Electric Start | 9.5 HP & 14 HP Pull Start |
| Sawhead Construction | Metal |
| Depth of Cut Scale | 2", 1 1/2", 1 1/4", 1", 3/4" |
| Power Feed | No |
| Power Head Elevation | No |
| Bed Type | Modular - Bolt-together steel bed sections |

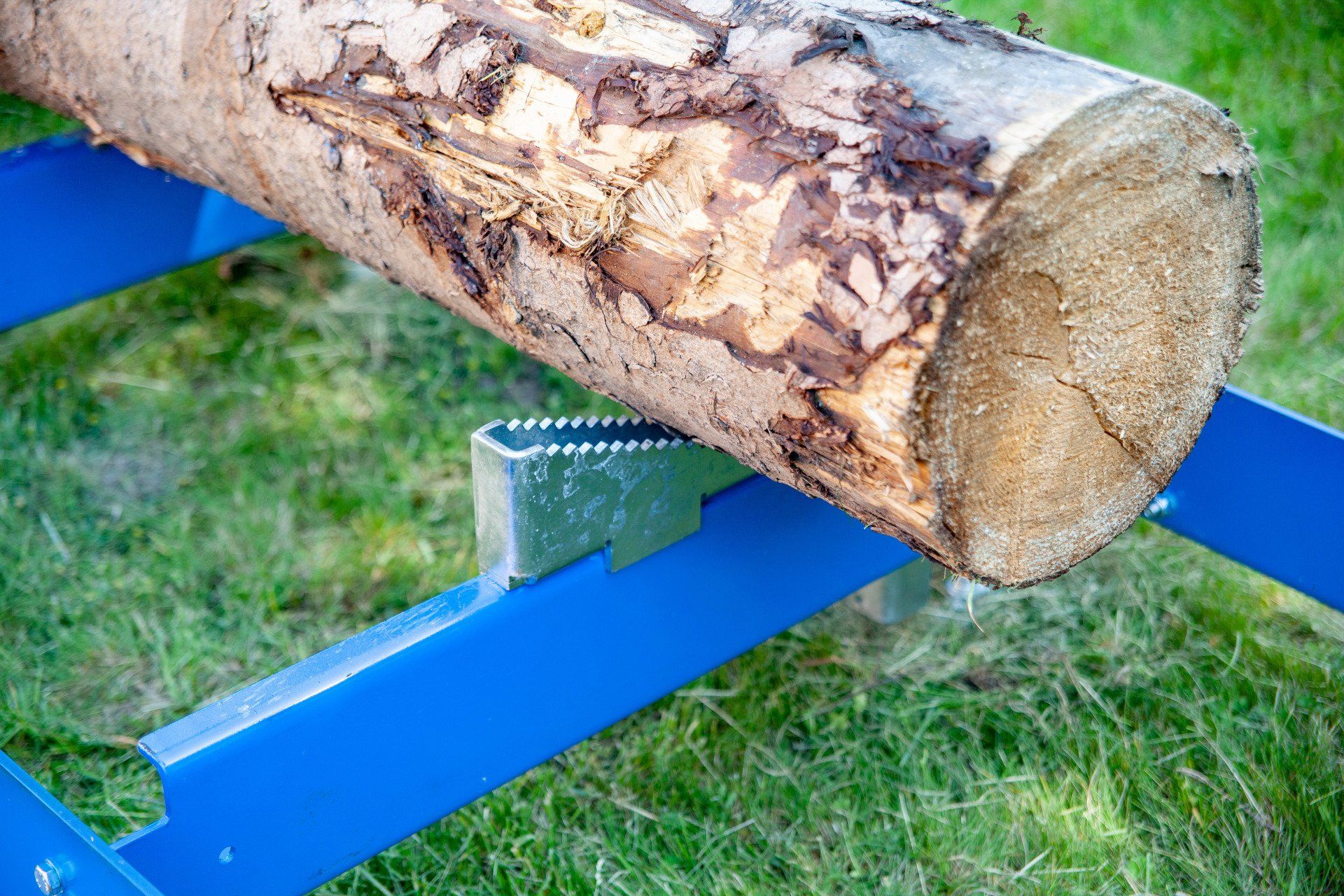

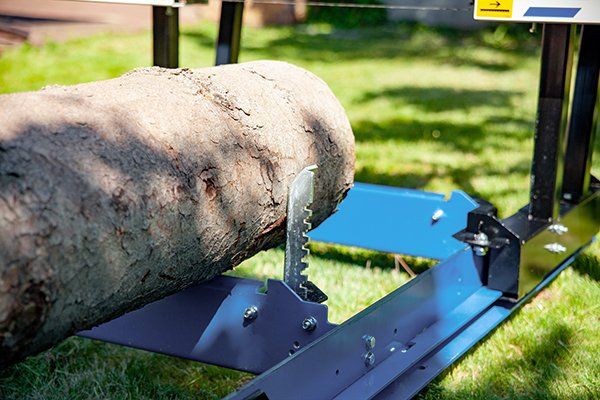

| Quick-Set Log Rest Posts | 4 (2 short and 2 tall) |
| Quick-Set Log Clamp | 1 |

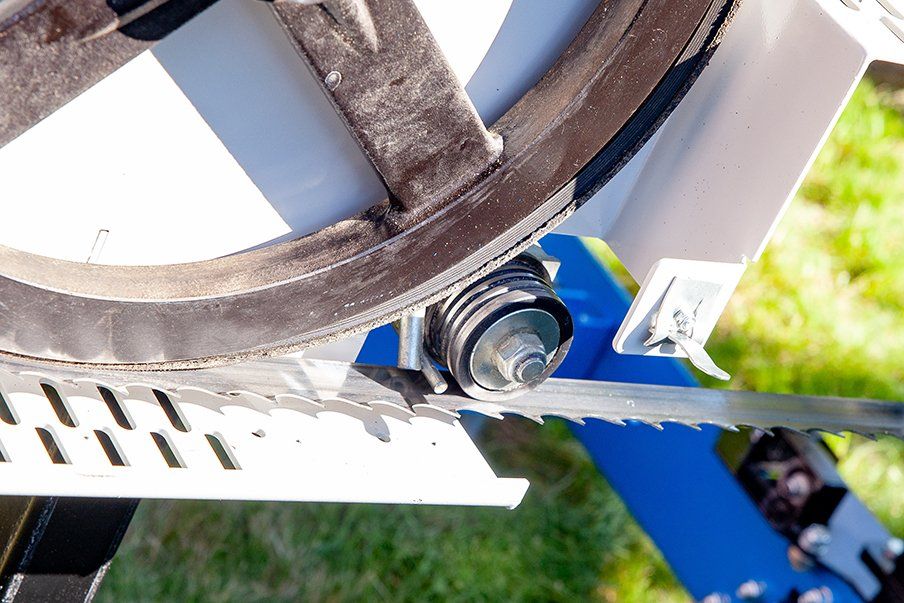

| Blade Guide System | High quality blade guide rollers |
| Blade Lube | Standard water lube |
| Blade Engagement | Sure Grip mechanical clutch |
| Bandwheels | 16" cast-iron |
| Blade Size | 132" long x 1 1/4"wide |
| Manufactured | Indiana, USA and Poland |
