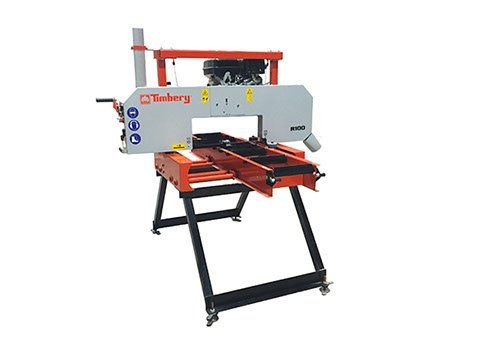

R100 Band Resaw
The R100 Resaw is an entry-level affordable solution for sawmillers to break down boards, cants and reclaiming slabs.
Visão geral
The R100 Resaw is designed to be an entry-level affordable solution for sawmillers to boost their productivity and. The R100 is a manually feed resaw that has a heavy-duty roller table that can handle cants that are 12” wide by 9” tall. This is a great unit for breaking down boards, cants and reclaiming slabs.
Easy to Use
One lever to throttle the engine and start the blade.

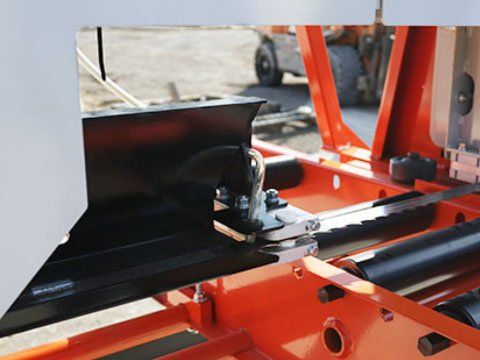

Adjustable Blade Guide Arm
Adjustable blade guide arm with ceramic guides. Adjust the blade guide closer to the cut to provide more support when cutting smaller material.
Water Lube
Gravity feed water lube system.
Return System
Built-in manual return system
Heavy Duty Rollers
2 1/2" heavy duty rollers
Especificações
| Standard Engine | 14 HP Gas Subaru |
| Blade | .042 x 1 1/4" x 132" |
| Band Wheels | 16" |
| Water Lube System | Yes |
| Feed System | Manual Push |
| Heavy Duty Roller | 7 Rollers 2 1/2" Diameter |
| Table Extensions | 4'10" (1.4m) sections |
Cutting Capacities
| Min. Length | 12" (30cm) |
| Max. Length | Unlimited |
| Min. Width | 2" (5cm) |
| Max. Width | 12" (30cm) |
| Min. Height | 3/4" (1.9cm) |
| Max. Height | 9" (22cm) |
