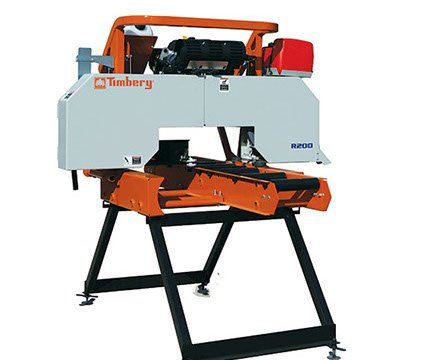

R200 Band Resaw
Engineered for production, the R200 is a manually fed resaw with a heavy-duty roller table that can handle cants up to 12” wide by 9” tall.
Visão geral
Engineered for production, the R200 is a manually fed resaw with a heavy-duty roller table that can handle cants up to 12” wide by 9” tall. This professional resaw is ideal for operations that demand continuous production for breaking down boards, cants and reclaiming slabs.

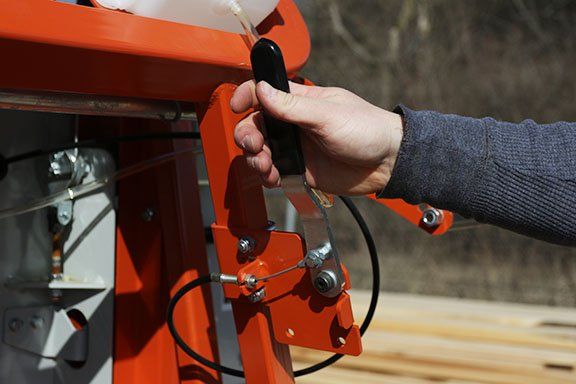

Easy to Use
One lever to throttle the engine and start the blade.
Adjustable Blade Guide Arm
Adjustable blade guide arm with ceramic guides. Adjust the blade guide closer to the cut to provide more support when cutting smaller material.

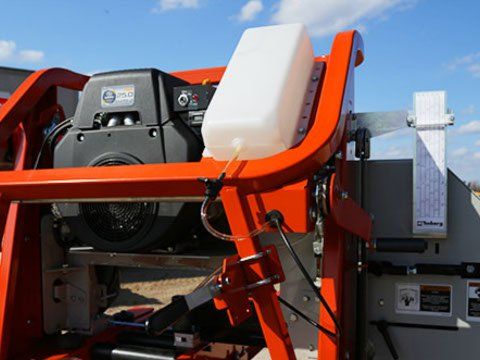

Water Lube
Gravity feed water lube system.
Return System
Built-in manual return system

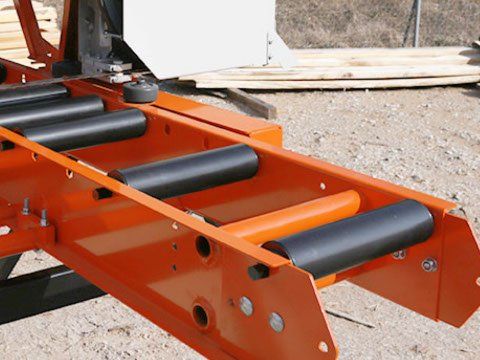

Heavy Duty Rollers
2 1/2" heavy duty rollers
Especificações
| Standard Engine | 16 HP Gas |
| Optional Engine | 23 HP Gas |
| Blade | .042 x 1 1/4" x 144" |
| Band Wheels | 19" |
| Water Lube System | Yes |
| Feed System | Manual Push |
| Heavy Duty Roller | 7 Rollers 2 1/2" Diameter |
| Table Extensions | 4'10" (1.4m) sections |
Cutting Capacities
| Min. Length | 12" (30cm) |
| Max. Length | Unlimited |
| Min. Width | 2" (5cm) |
| Max. Width | 12" (30cm) |
| Min. Height | 3/4" (1.9cm) |
| Max. Height | 9" (22cm) |
